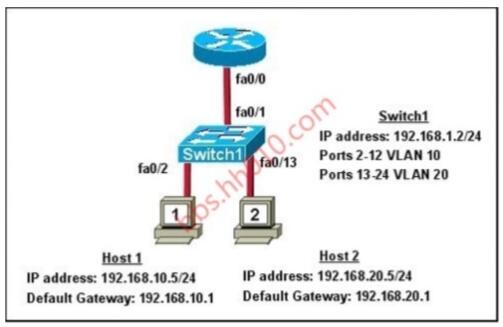

Refer to the exhibit． What commands must be configured on the 2950 switch and the router to allow communication between host 1 and host 2? [*] Router(config)# interface fastethernet 0/0 Router(config-if)# ip address 192．168．1．1 255．255．255．0 Router(config-if)# no shut down Router(config)# interface fastethernet 0/0 Router(config-if)# no shut down Router(config)# interface fastethernet 0/0．1 Router(config-subif)# encapsulation dot1q 10 Router(config-subif)# ip address 192．168．10．1 255．255．255．0 Router(config-subif)# interface fastethernet 0/0．2 Router(config-subif)# encapsulation dot1q 20 Router(config-subif)# ip address 192．168．20．1 255．255．255．0 Router(config)# router eigrp 100 Router(config-router)# network 192．168．10．0 Router(config-router)# network 192．168．20．0 Switch1(config)# vlan database Switch1(config-vlan)# vtp domain XYZ Switch1(config-vlan)# vtp server Switch1(config)# interface fastethernet 0/1 Switch1(config-if)# switchport mode trunk

On which options are standard access lists based? destination address and wildcard mask source address and wildcard mask destination address and subnet mask source address and subnet mask

Which two statements about static NAT translations are true? They are always present in the NAT table． They allow connection to be initiated from the outside． They can be configured with access lists, to allow two or more connections to be initiated from the outside． They require no inside or outside interface markings because addresses are statically defined．

Which type of EIGRP route entry describes a feasible successor? a primary route,stored in the routing table a backup route,stored in the routing table a backup route,stored in the topology table a primary route,stored in the topology table

Which command shows your active Telnet connections? show session show cdp neighbors show users show queue

What is the default maximum number of equal-cost paths that can be placed into the routing of a cisco OSPF router? 16 2 unlimited 4

Refer to the exhibit． [*] Assuming that the entire network topology is shown, what is the operational status of the interfaces of R2 as indicated by the command output shown? One interface has a problem． Two interfaces have problems． The interfaces are functioning correctly． The operational status of the interfaces cannot be determined from the output shown．

Refer to the exhibit． According to the routing table, where will the router send a packet destined for 10．1．5．65? [*] 10．1．1．2 10．1．2．2 10．1．3．3 10．1．4．4

Refer to the exhibit． Why is flash memory erased prior to upgrading the IOS image from the TFTP server? [*] The router cannot verify that the Cisco IOS image currently in flash is valid Flash memory on Cisco routers can contain only a single IOS image． Erasing current flash content is requested during the copy dialog． In order for the router to use the new image as the default, it must be the only IOS image in flash．

Which two tasks does the Dynamic Host Configuration Protocol perform? Set the IP gateway to be used by the network． Perform host discovery used DHCPDISCOVER message． Configure IP address parameters from DHCP server to a host． Provide an easy management of layer 3 devices． Assign and renew IP address from the default pool．

Refer to the exhibit． For what two reasons has the router loaded its IOS image from the location that is shown? [*] Router1 has specific boot system command that instruct it to load IOS from TFTP server． Router1 is acting as a TFTP server for other routers． Router1 cannot locate a valid IOS image in flash memory． Router1 defaulted to ROMMON mode and loaded the IOS image from a TFTP server． Cisco routers will first attempt to load a image from TFTP for management purposes．

Refer to the exhibit． What statement is true of the configuration for this network? [*] The configuration that is shown provides inadequate outside address space for translation of the number of inside addresses that are supported． Because of the addressing on interface FastEthernet0/1, the Serial0/0 interface address will not support the NAT configuration as shown． The number 1 referred to in the ip nat inside souce command recerences access-list number 1． ExternalRouter must be configured with static routers to network 172．16．2．0/24

Which statement describes the process of dynamically assigning IP addresses by the DHCP server? Addresses are allocated after a negotiation between the server and the host to determine the length of the agreement． Addresses are permanently assigned so that the hosts uses the same address at all times． Addresses are assigned for a fixed period of time, at the end of the period, a new request for an address must be made． Addresses are leased to hosts, which periodically contact the DHCP server to renew the lease．

A network engineer wants to allow a temporary entry for a remote user with a specific usename and password so that the user can access the entire network over the internet．which ACL can be used? reflexive extended standard dynamic

How does a DHCP server dynamically assign IP addresses to hosts? Addresses are permanently assigned so that the host uses the same address at all times． Addresses are assigned for a fixed period of time． At the end of the period, a new request for an address must be made, and another address is then assigned． Addresses are leased to hosts． A host will usually keep the same address by periodically contacting the DHCP server to renew the lease． Addresses are allocated after a negotiation between the server and the host to determine the length of the agreement．

When a DHCP server is configured, which two IP addresses should never be assignable to hosts? network or subnetwork IP address broadcast address on the network IP address leased to the LAN IP address used by the interfaces manually assigned address to the clients

Which commands are required to properly configure a router to properly configure a router to run OSPF and to add network 192．168．16．0/24 to OSPF area 0? Router(config)#router ospf 1 Router(config)#router ospf 0 Router(config)#router ospf area 0 Router(config-router)#network 192．168．16．0 0．0．0．255 area 0 Router(config-router)#network 192．168．16．0 0．0．0．255 0

Refer to the exhibit． What commands must be configured on the 2950 switch and the router to allow communication between host 1 and host 2? [*] Router(config)# interface fastethernet 0/0 Router(config-if)# ip address 192．168．1．1 255．255．255．0 Router(config-if)# no shut down Router(config)# interface fastethernet 0/0 Router(config-if)# no shut down Router(config)# interface fastethernet 0/0．1 Router(config-subif)# encapsulation dot1q 10 Router(config-subif)# ip address 192．168．10．1 255．255．255．0 Router(config-subif)# interface fastethernet 0/0．2 Router(config-subif)# encapsulation dot1q 20 Router(config-subif)# ip address 192．168．20．1 255．255．255．0 Router(config)# router eigrp 100 Router(config-router)# network 192．168．10．0 Router(config-router)# network 192．168．20．0 Switch1(config)# vlan database Switch1(config-vlan)# vtp domain XYZ Switch1(config-vlan)# vtp server Switch1(config)# interface fastethernet 0/1 Switch1(config-if)# switchport mode trunk

Which statement about access lists that are applied to an interface is true? you can apply multiple access lists with the same protocol or in different direction． you can config one access list,per direction,per layer 3 protocol you can place as many access lists as you want on any interface you can apply only one access list on any interface

Refer to the exhibit． What can be determined about the router from the console output? [*] No configuration file was found in NVRAM． No configuration file was found in flash． No configuration file was found in the PCMCIA card． Configuration file is normal and will load in 15 seconds．

Refer to the exhibit． Given the output for this command, if the router ID has not been manually set, what router ID will OSPF use for this RouterD? [*] 10．1．1．2 10．154．154．1 172．16．5．1 192．168．5．3
